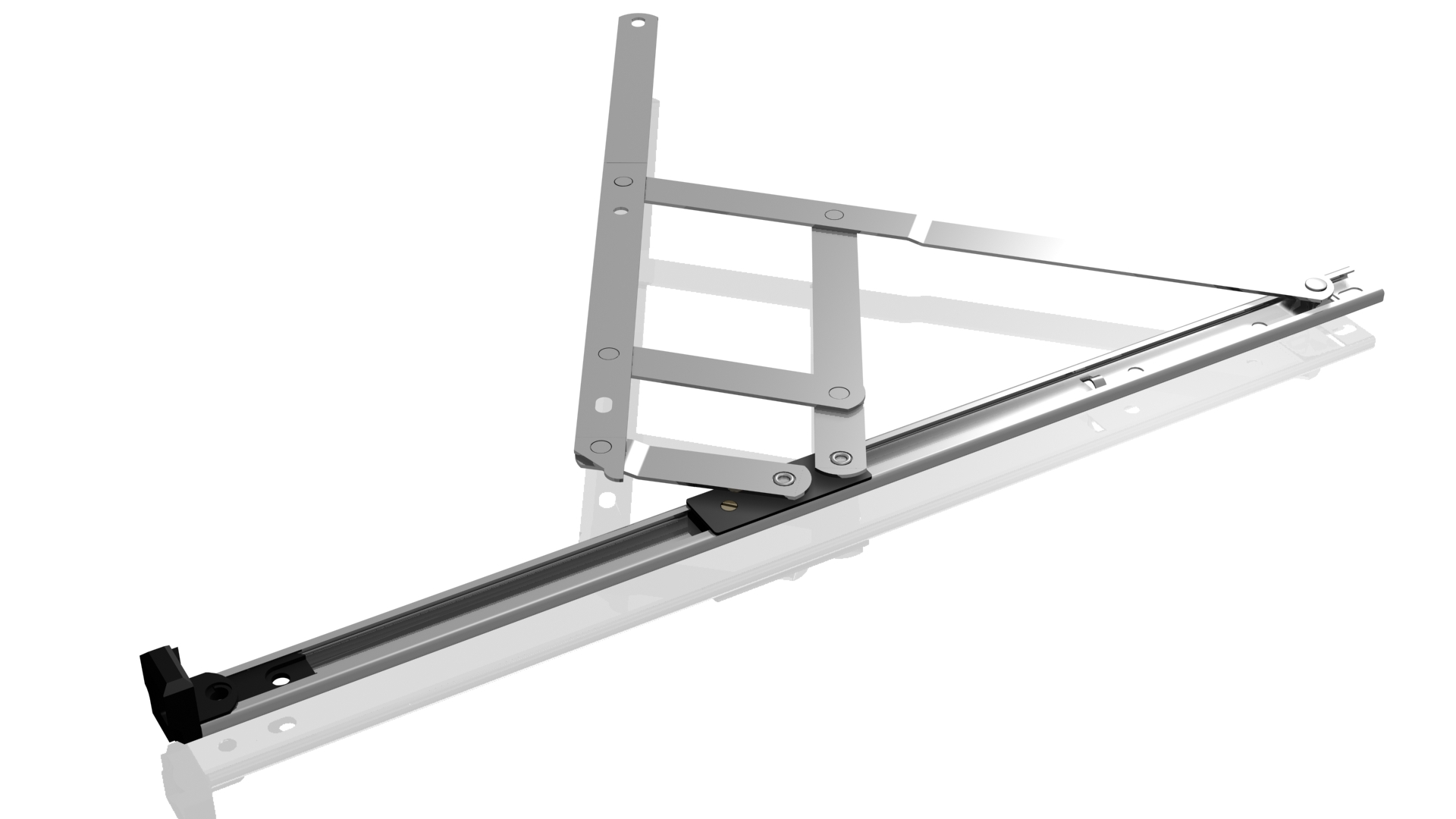

Egress Only (End Opening)
- Side hung friction stays, which allow a clear unobstructed openable area to comply with emergency egress requirements of Approved Document B of the Building Regulations.
- Complies with building regulations Approved Doc B1 (fire safety) for means of escape.
- Cycle tested with normal operation after 25,000 cycles in accordance with BSEN 1191:2012 (Exceeded class 3).
- Initial opening to 85° providing a clear opening in excess of 450mm on a 600mm wide vent.
- When fitting the SP254, SP300 and SP400 please observe BS8213 Part1:2004 Code of practice for safety in use and during cleaning of windows.
- Available in Ferritic steel and Austenitic steel for high corrosion resistance. Tested to Grade 5 – 480 hours exposure in accordance with BS EN 1670:2007.
Specifications
Recommended maximum window weights and sizes
| PRODUCT | APPLICATION | SIZE INS | SIZE MM | WINDOW SIZE APPROX WIDTH MM | WINDOW WEIGHT APPROX KG | STACK HEIGHT MM | OPENING ANGLE |
| SP254 | SIDE HUNG | 10 | 600 | 1200 | 21 | 13/14 & 16/17 | 80° |
| SP300 | SIDE HUNG | 12 | 600 | 1200 | 22 | 13/14 & 16/17 | 85° |
| SP400 | SIDE HUNG | 16 | 700 | 1200 | 24 | 13/14 & 16/17 | 85° |
