L Type Locking Point Pawl


Adjustable L Type of Typhoon locking Pawl cam +/– 1.5mm adjustment. It is used along with transmission rod PE222400/ALUSTP. Shutter groove 15-20mm is required.  It is suitable for heavy duty wind application. Made up of high strength zamak. Fixed striker, to be combined with the adjustable pawl, required to create a lock point. Normally used in combination with heavy duty fixed striker PE640S & PE9980S to achieve locking in the window. It is highly resistant with high tear strength

Get a quote


Part No. PE851
Package 25 nos.
Available finish Black Anodized

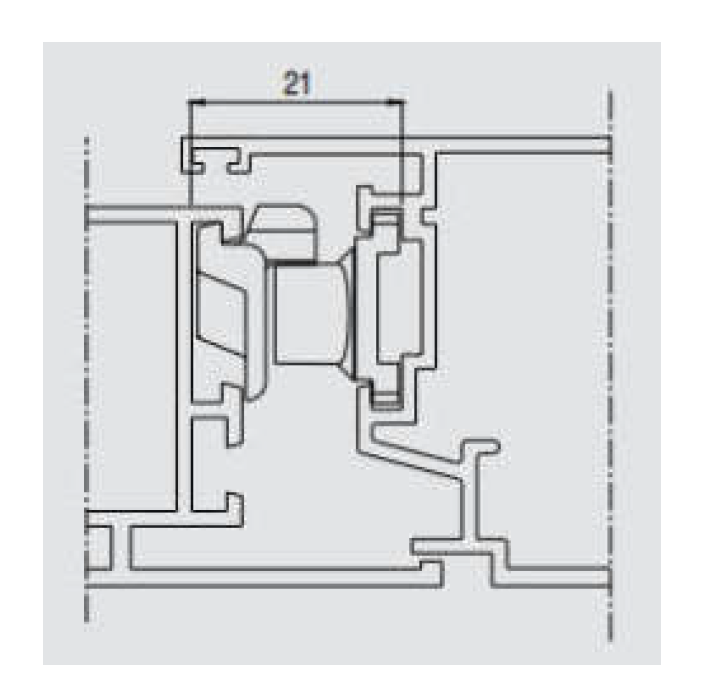

Applicable in Standard Euro groove Type 1: 15-20 groove in the shutter & 14-18 groove in the outer frame. Also applicable in Standard Euro groove A02 – A06 – A07 – A10 – A11 – A14 – A16
Type of Window / Door Side hung, top hung, Bottom hung,  Open out and open in
