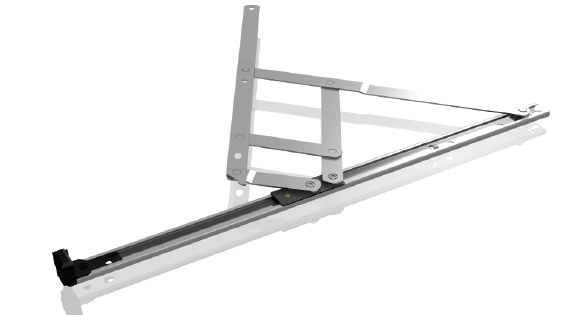

Sinidex Extreme

HS90 12 EXT/HS90 16 EXT

Maximum vent width of 950mm and a maximum weight of 35 Kgs. Opening angle of 87° with the HS12-90 Extreme and 84° with the HS16-90 Extreme. Available in 13mm and 17mm stack heights. Cycle tested with normal operation after 25,000 cycles. Easy to fit with adjustable friction mechanism. Overlap slide for enhanced smooth operation. 2 reinforced Heavy Duty links for added strength. Easy clean complies with BS8213. Manufactured using high grade Austenitic 304 stainless steel to BSEN 10088-2 and Ferretic 430 stainless steel for enhanced corrosion resistance. BBA tested in accordance with BS6375-2:1987, BS6375-2:2009 and BSEN13126-6:2008

Get a quote

Specifications

RECOMMENDED MAXIMUM WINDOW WEIGHTS & SIZES
PRODUCT SIZE INS SIZE MM WINDOW SIZE
APPROX WIDTH MM
WINDOW WEIGHT
APPROX KG
STACK HEIGHT MM OPENING
ANGLE
HS12-90 Extreme 12 311 750 30 13/14 & 16/17 87°
HS16-90 Extreme 16 406 950 35 13/14 & 16/17 84°
