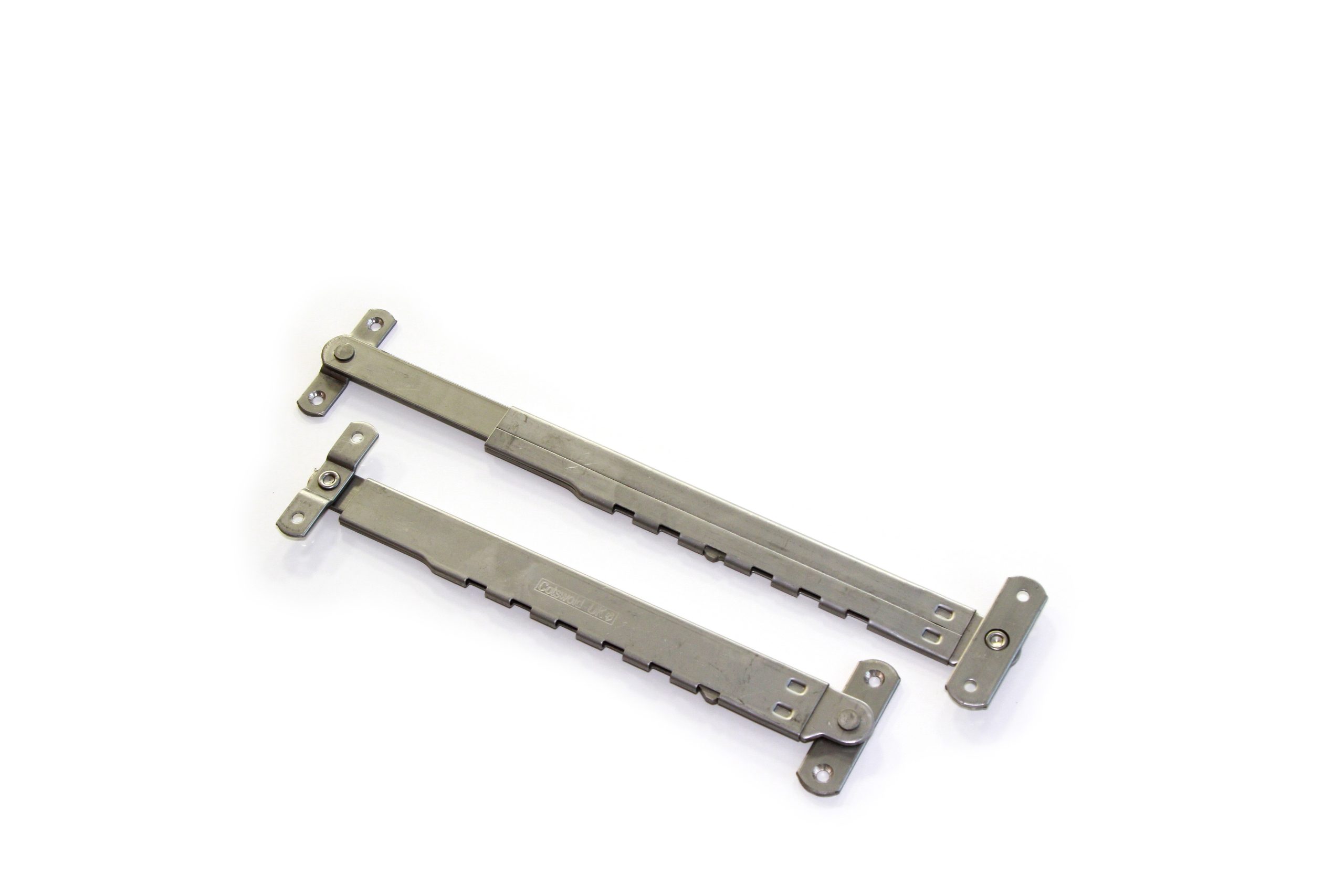

Standard Support Arm

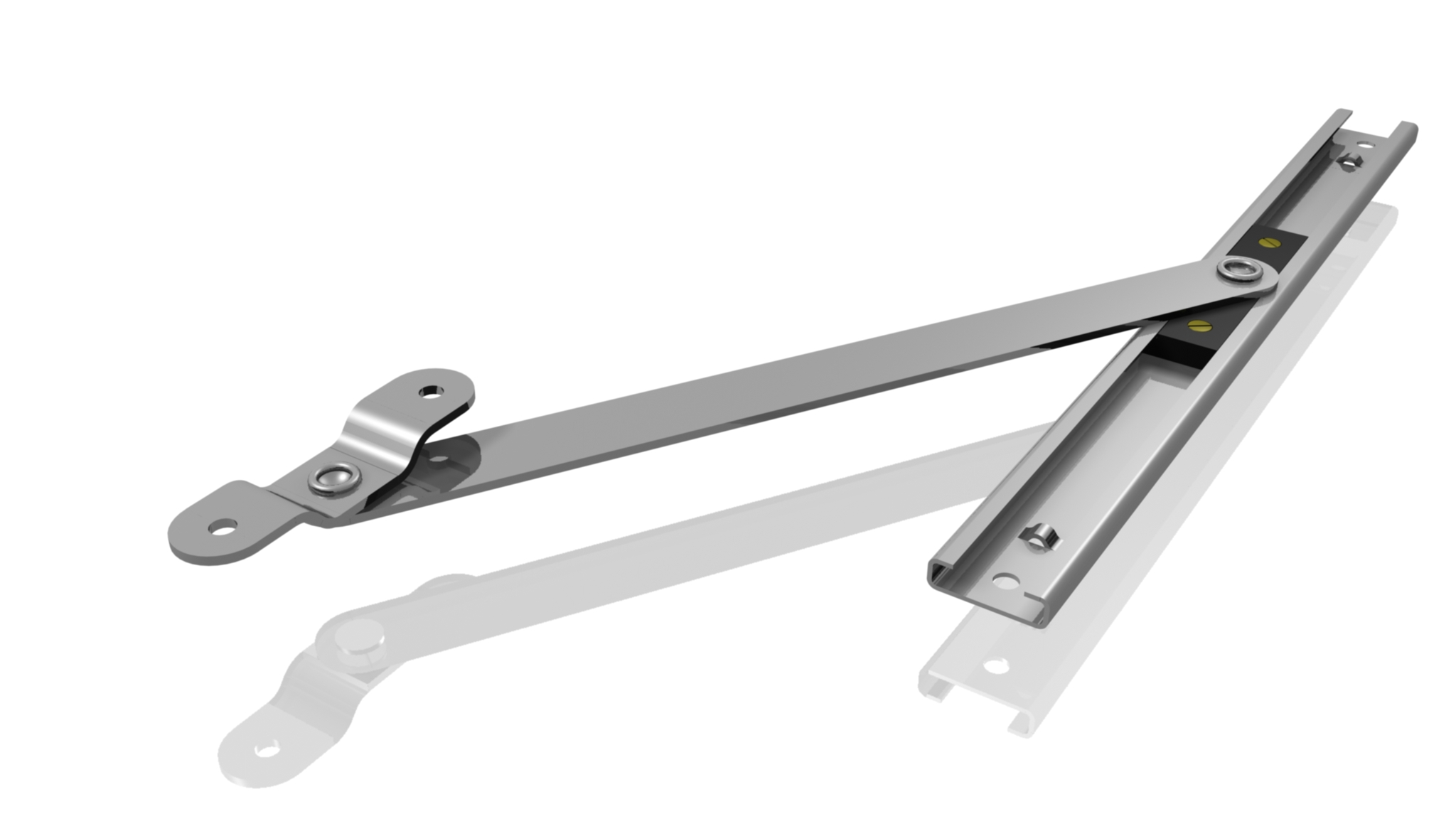

FA103/FA143/FA183/ HD102 10"

On side-hung windows supported by fricion stays or butt hinges, the friction arm offers distinct advantages over the conventional peg stay. It is totally concealed when the vent is closed and offers no internal obstruction when opened. For large top hung vents the friction arm can be used as an extra support by fitting it below the existing friction stay. This has the effect of limiting the opening as well as adding greater stability to the window. Available in standard form at 180mm long the friction are can also be supplied in different sizes to suit customers specific requirements.

Get a quote

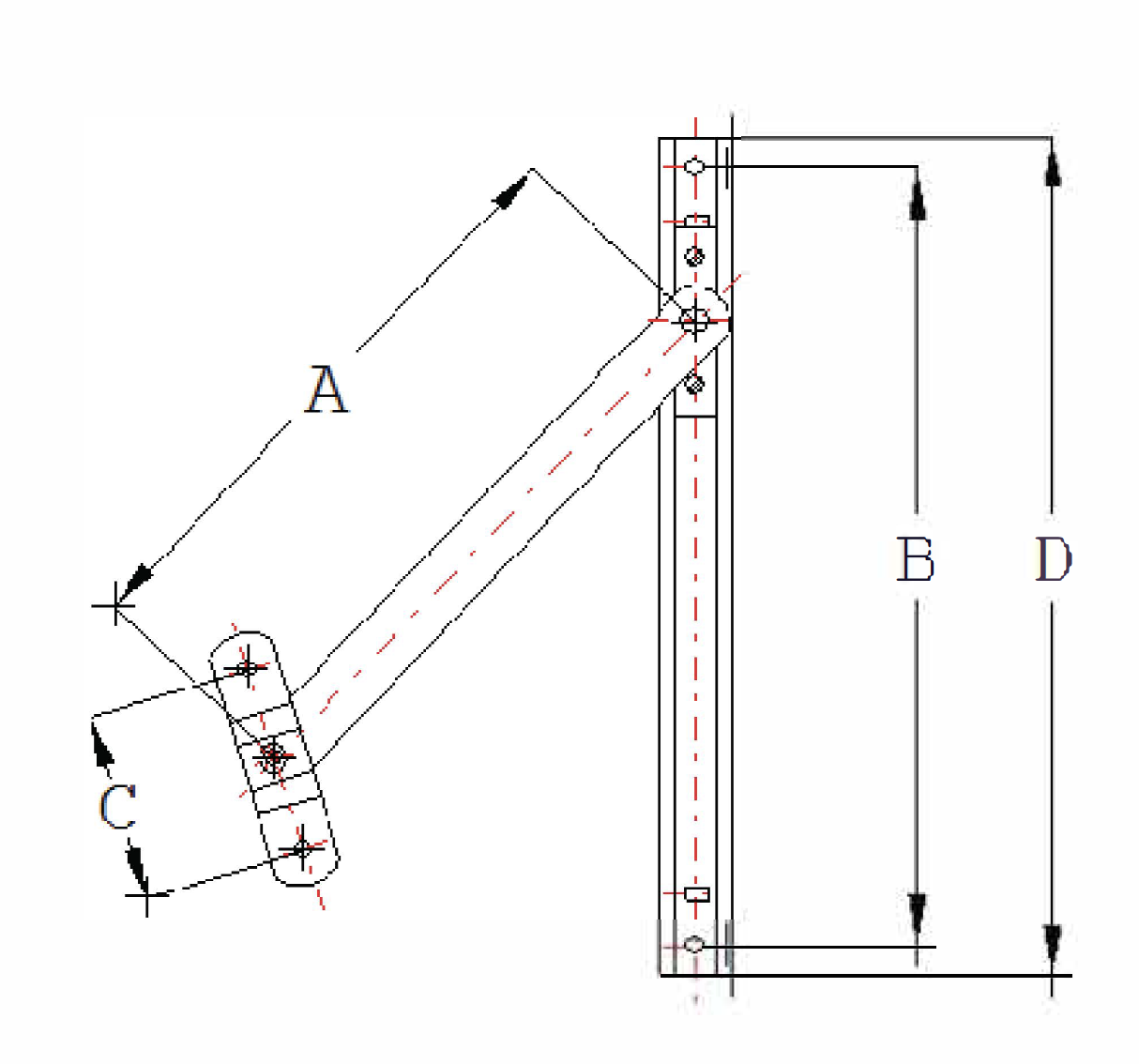

Sizes & Measurements

Size FA103 FA143 FA183 FA203 HD102 10″
‘A’ REF 180.1 266.95 368.05 420.12 214
‘B’ REF 236.0 399.95 439.93 493.01 242
‘C’ REF 57.2 57.2 57.2 57.2 56.0
‘D’ REF 245.0 355.81 457.2 508.0 260
