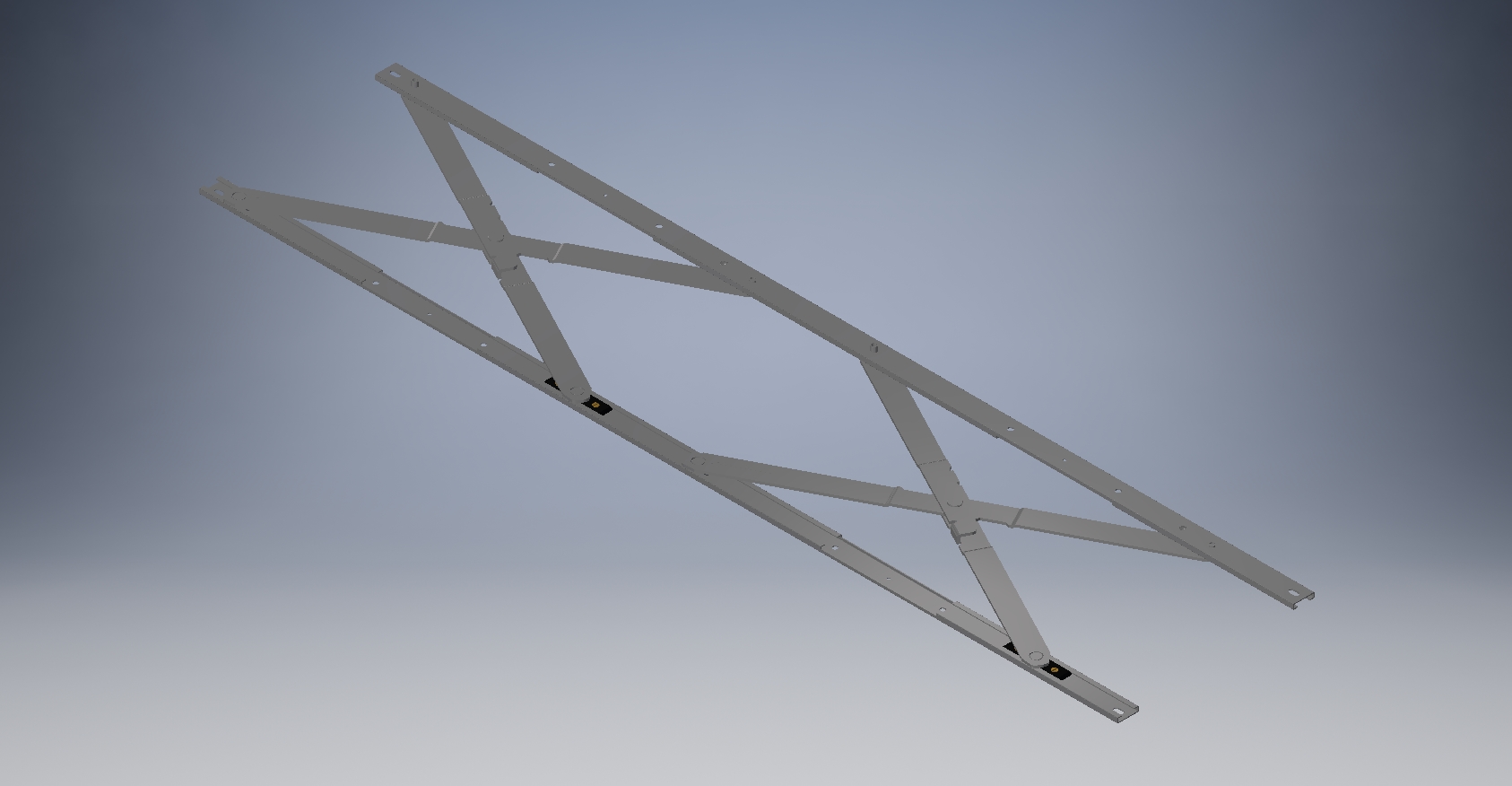

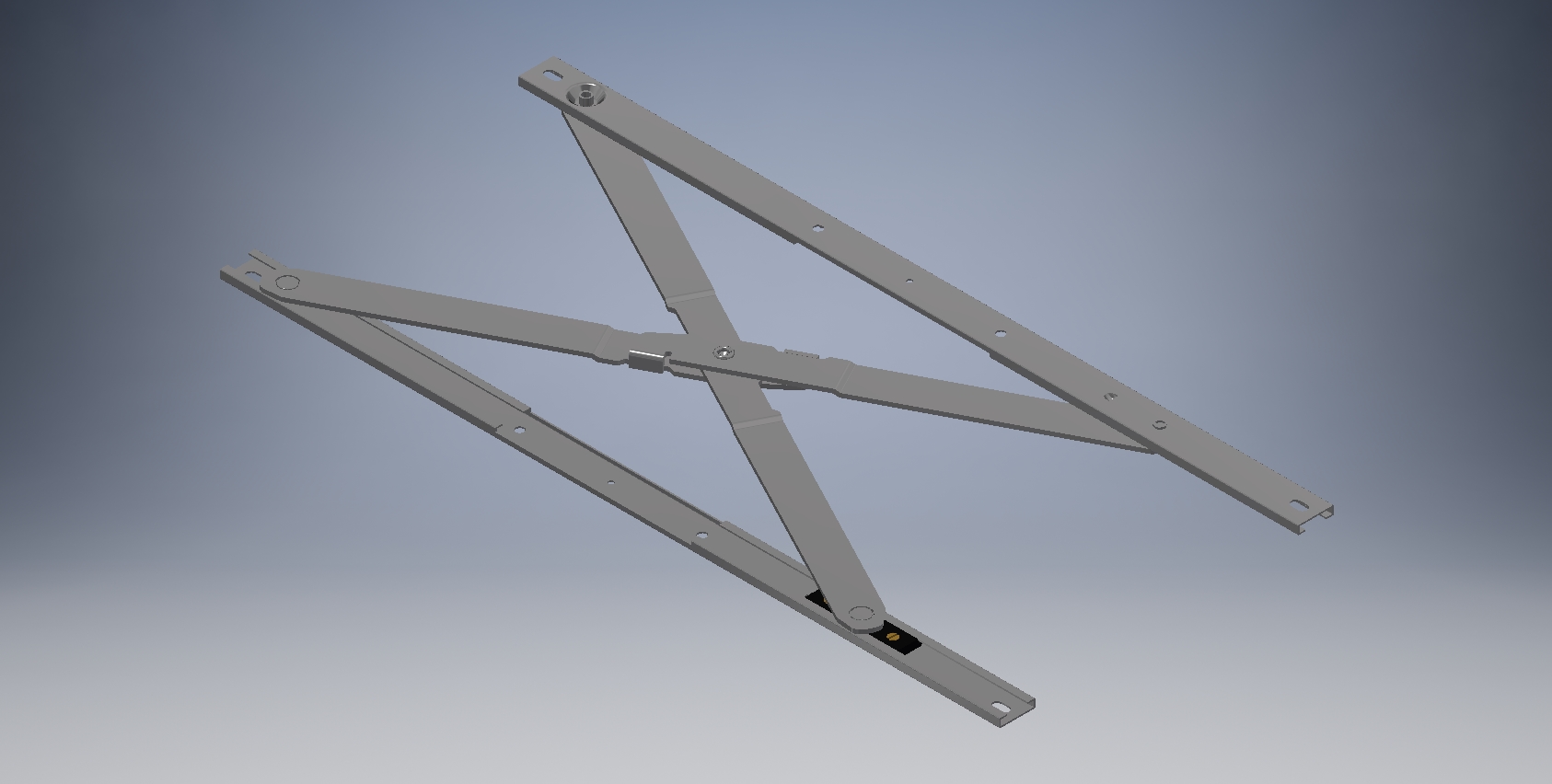

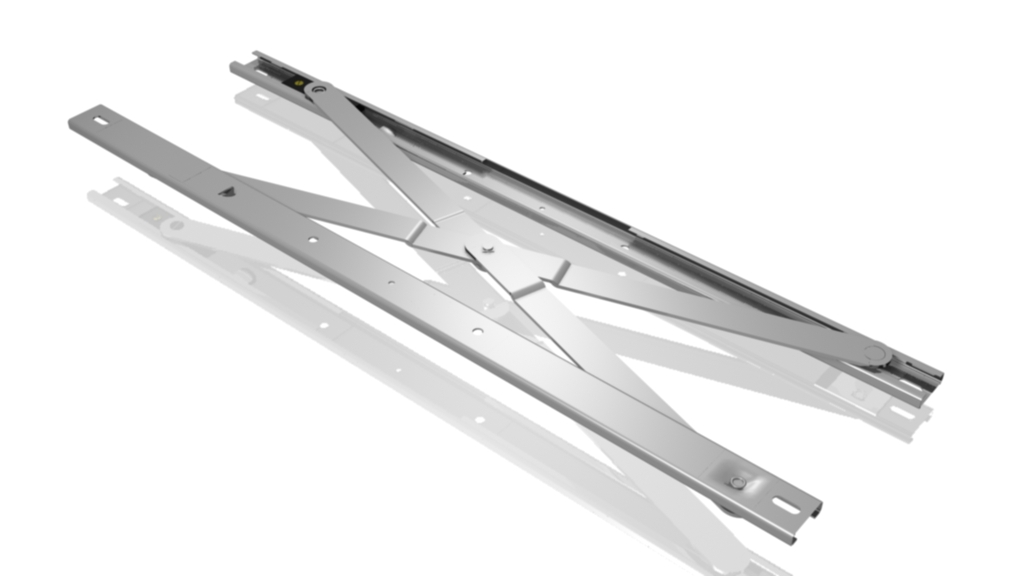

Parallel Ultra Stay
PARUL 11"/18"/36"
- The Ultra Parallel Stay is the market leading product
- Inline closing means you can now fit a parallel stay on a standard profile
- Reduces profile options require
- Maintain aesthetics of the window when using parallel openings next to casement
- Interlocking arms ensure marketing leading parallelism during operation
- Provides enhanced natural ventilation by allowing a balanced air flow around the entire window
- Can be operated manually or using electric motors
- Can be connected to a building management system as part of an automated solution for climate control
- Full technical and sales support which will cover consultancy per project basis and on-site advice when necessary.
- Full details of maximum vent sizes and weights are available on our specification and application sheets.
- Available in 11”, 18” and 36” lengths and 16.9 or 21mm stack heights when using 2.5mm link arms and 11”, 18” and 36” lengths and 21mm stack heights when using 3.0mm link arms.
Specifications
| 2.5mm LINK ARMS – RECOMMENDED MAXIMUM WINDOW WEIGHTS & SIZES | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT | SIZE INS | SIZE MM | WINDOW SIZE APPROX MAX WIDTH MM |
WINDOW SIZE APPROX MAX HEIGHT MM |
MAX WEIGHT APPROX KG |
STACK HEIGHT MM | OPENING ANGLE |
| 11” PARALLEL | 11 | 280 | 350 | 750 | 25 | 16.9-1.0 | 95mm |
| 18” PARALLEL | 18 | 470 | 1200 | 1000 | 100 | 16.9-1.0 | 180mm |
| 36” PARALLEL | 36 | 940 | 2000 | 2000 | 200 | 16.9-1.0 | 180mm |
