Locking Point PE9640

PE9640 ( TYPE-1)/PE820 (TYPE-7)

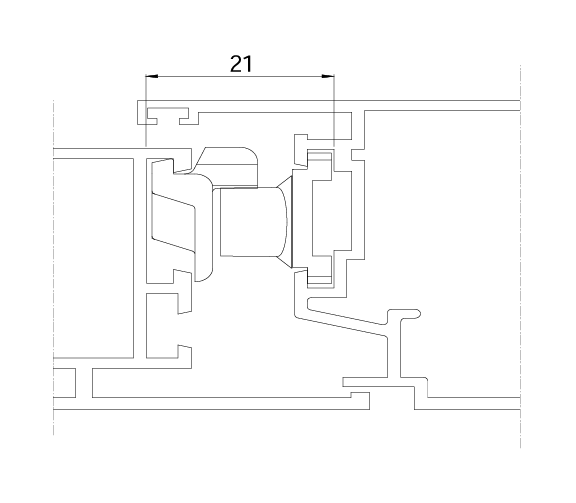

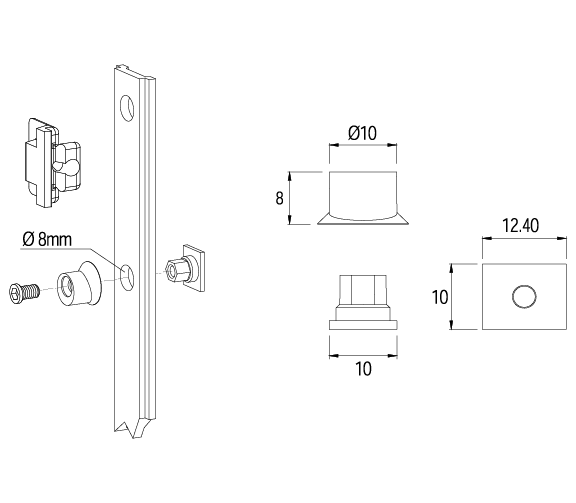

Adjustable pawl and fixed striker designed for Euro groove section type 1 & equivalent; required shutter groove is 15-20mm. Adjustable cam pawl + / – 1.5mm adjustment is possible. Used along with transmission rod PE222400/ALUSTP and handles. Fixed striker, to be combined with an adjustable pawl, necessarily for making the locking points on a top-hung window or outward / inward opening (side hung) window. The striker is made up of black galvanized zamak, while the cam from zamak & nickel finish.

Get a quote


Package 100 Pcs.
Available finishes Black
