Sash Seal PE226

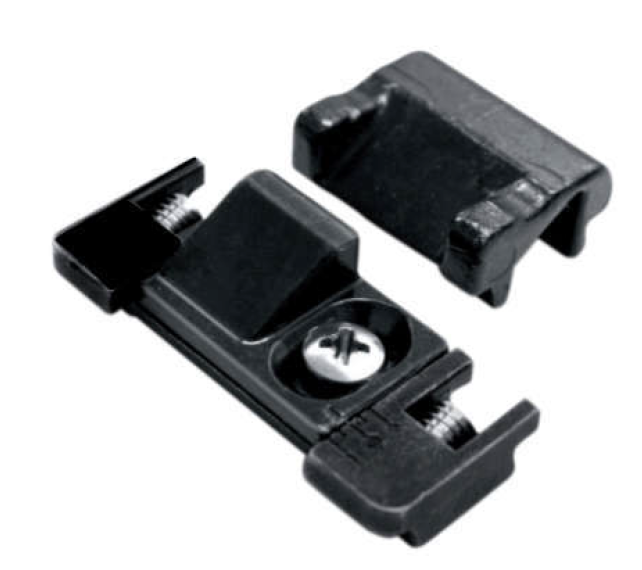

Slider, counterplate and base of the counterplate made of Zamak; TSCCR M4x6 screw and stainless steel setscrew.

Get a quote


Part No. PE226
Package 25nos.
Available finish Black anodized

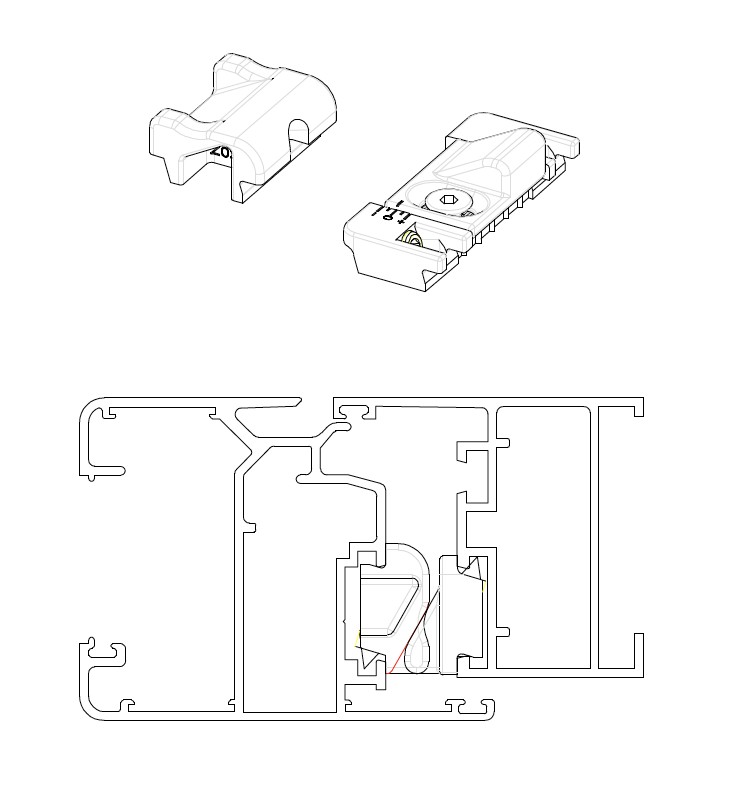

Applicable in Standard Euro groove Type 1: 15-20 groove in the shutter & 14-18 groove in the outer frame. Also applicable in Standard Euro groove A02 – A05 – A06 – A20 – A21 – A22

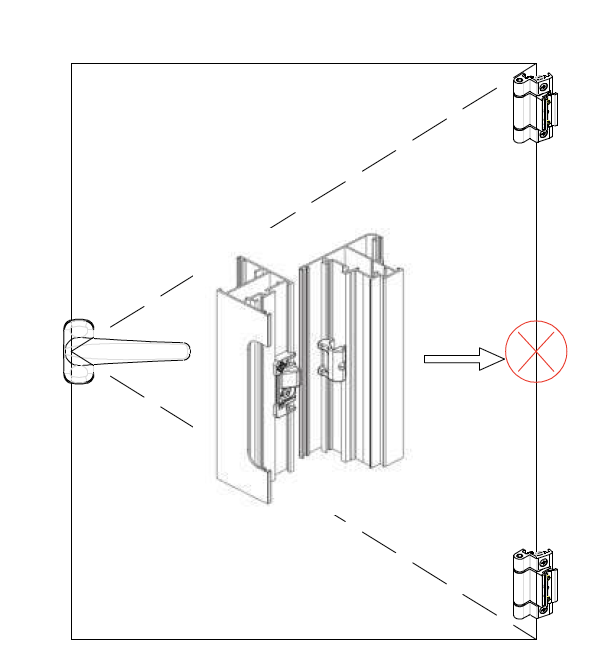

Function It is used as an additional intermediate third closing point between the butt hinges in casement window. Always fixed opposite side of the Handle.
